New Products from Phoenix Contact

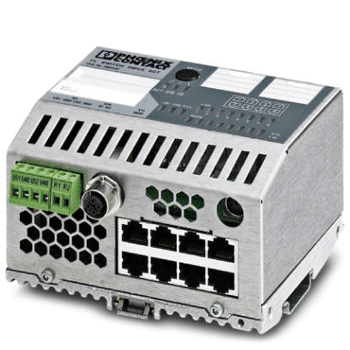

Smart Managed Compact Switch

Phoenix Contact expands its line of Ethernet infrastructure products with the introduction of a Gigabit managed switch. The Smart Managed Compact Switch (SMCS) provides Gigabit throughput capability on all ports simultaneously. It is suited to operate equally well within Profinet and EtherNet/IP installations, as well as standard Ethernet applications.
Both SMCS variants offer the following features:
  • Eight ports capable of simultaneous Gigabit operation
  • Integrated web server enables easy access to switch functions and settings
  • SNMP (Simple Network Management Protocol) support for switch configuration and diagnostics
  • Optional memory plugs enable saving switch configuration and Media Redundancy Protocol (MRP) Ring Manager
  • Multiple configuration choices: Web browser, SNMP, or serial connection
  • RSTP and fast ring redundancy for recovery times as low as 100 ms
  • MRP client or manager capability
  • IGMP snooping and query support for multicast and EtherNet/IP requirements
  • VLAN support allows logical network segmentation
  • Port security, statistics and diagnostics
  • Broadcast/multicast limiter
  • Port mirroring




MINI ATEX 1.5A Power Supply

The new MINI-EX 1.5 A power supply is Phoenix Contact’s latest offering in the MINI power supply line. This power supply is approved for use in ATEX Zone II for hazardous locations**. The new MINI power supply also offers connections to the COMBICON T-bus connector, allowing it to be connected to safety relays, MINIMCR and Bluetooth Radio.
  • Worldwide input voltage range − 85-264 VAC
  • Regulated 24 VDC output − Precise output voltage
  • T-Bus connection − Reduces the amount of wiring for additional devices
  • Power Boost − 2 A Power Boost provides ample current for starting additional loads
**For Class I, Div. 2 applications, use MINI-SYS-PS-100-240AC/24DC/1.5 (2866983)
