Carlo Gavazzi LD30 IO-Link Photoelectric Laser Sensors

CARLO GAVAZZI is pleased to announce the launch of our new Photoelectric Laser Sensors with Integrated IO-Link Communications. The LD30 Series are laser sensors feature great background suppression based on the Time of Flight (ToF) sensing principle. These series of photoelectric sensors have a sensing range of up to 1,000mm for either dark or white objects. The background suppression has been increased four times compared to previous versions. In addition, the LD30 sensors come in a very compact housing making it ideal for locations with limited space and can be used in an IO-Link network or standard non IO-Link systems. When these sensors are used in an IO-Link network, important data points, like the actual distance to the target can be obtained.

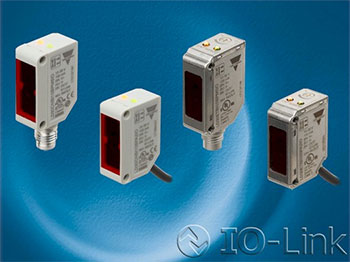

This new family consists of 4 sensor types, in either IP67 plastic (LD30CNB) or IP69K stainless steel AISI316L (LD30ETB) housings. Furthermore, every sensor can be easily configured in more than half a million combinations through the IO-Link communications, which increases flexibility to solve challenging applications.

The LD30 sensors have been developed to operate in IO-Link environments, where the sensing performance needs to be monitored and logged. Thanks to the easy and full customization of the sensors, you can choose from lots of combinations of settings and meet your specific requests.

The LD30 Laser Photoelectric Sensors with IO-Link feature:

  • IP69K Stainless steel housing or IP67 Plastic housing
  • Two separate switching signal channels (SSC)
  • Long range background suppression
  • Adjustable sensing distance between 50 to 1000mm via potentiometer or IO-Link
  • Modes of operation: Single point, two point and window
  • Temperature alarms and logging functions
  • Logic gates functionality: AND, OR, X-OR and Gated Set Reset Flip-Flop
  • Operating temp.: -25°C to +50°C (-13° to +122°F)
  • Time Delay Functionality: On delay, off delay, one shot leading or trailing edge with values between 1ms to 32,767 minutes
  • Two independent outputs fully configurable: NPN/PNP, Push-pull, external input or remote teach NO or NC
  • 2m PVC cable or M8-plug
  • IO-Link communication V 1.1

These sensors have been designed to fulfill the industrial requirements and provide accurate detection of objects of different sizes, shapes or surface structures, in the Food and Beverage, Machine Tools, Packaging and Wrapping, Plastics and Rubber, and Material Handling markets.
